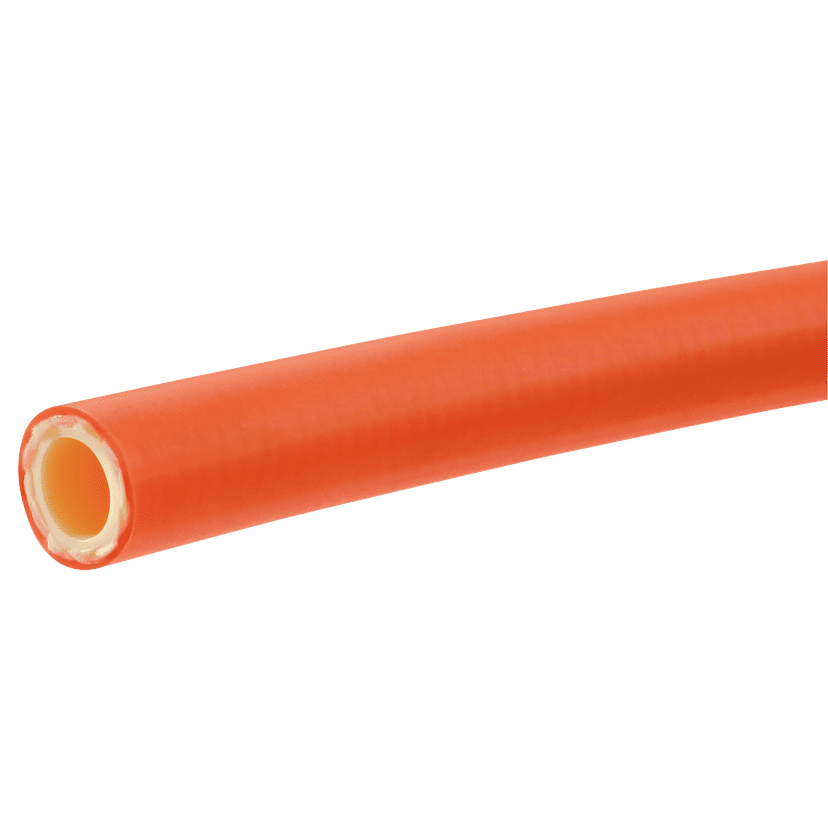

Danfoss Synflex 3/16" ID Hydraulic Hose 2 Yarn Thermoplastic SAE100R7
Product Code: 37AL-03
...
Details
Brand
Danfoss Synflex
Hose Diameter (DN)
10.8
Standard
SAE100R7
Colour
Orange
Material
Polyester
Maximum Working Pressure bar
207
Inside Diameter Inch
3/16"
Outside Diameter mm
10.8
Length Metres
76
Series
Cotton Braided
Working Temperature
-54°C to +100°C
Specification
3/16" Inside Diameter, Hydraulic Hose, 2 Yarn Thermoplastic, 37AL Non-Conductive, 76.2 Metre Coil, Orange, Polyester Inner Material, Non Perforated Non Stick Polyurethane Outer Material, Braided Synthetic Fibre, 4540-303.00 Die Reference, SAE100R7, Bursting Pressure 828 bar, Working Temperature -54°C to +100°C, Maximum Working Pressure 207 bar, Danfoss Synflex+L147Non Perforated Non Stick Polyurethane, Danfoss Synflex
