J+J 1.1/4" 6400 Brass BSP WRAS BV F/W J2L10 Low Voltage Actuator

Product Code: L10 6400-114

...

Details

Valve Working Temperature

-20°C to +170°C

Maximum Working Pressure bar

Valve Material

Brass

Brand

J+J

Approvals

WRAS

Actuator Working Temperature

-20°C to +70°C

End Connection

BSPP

Size

1.1/4"

Specification

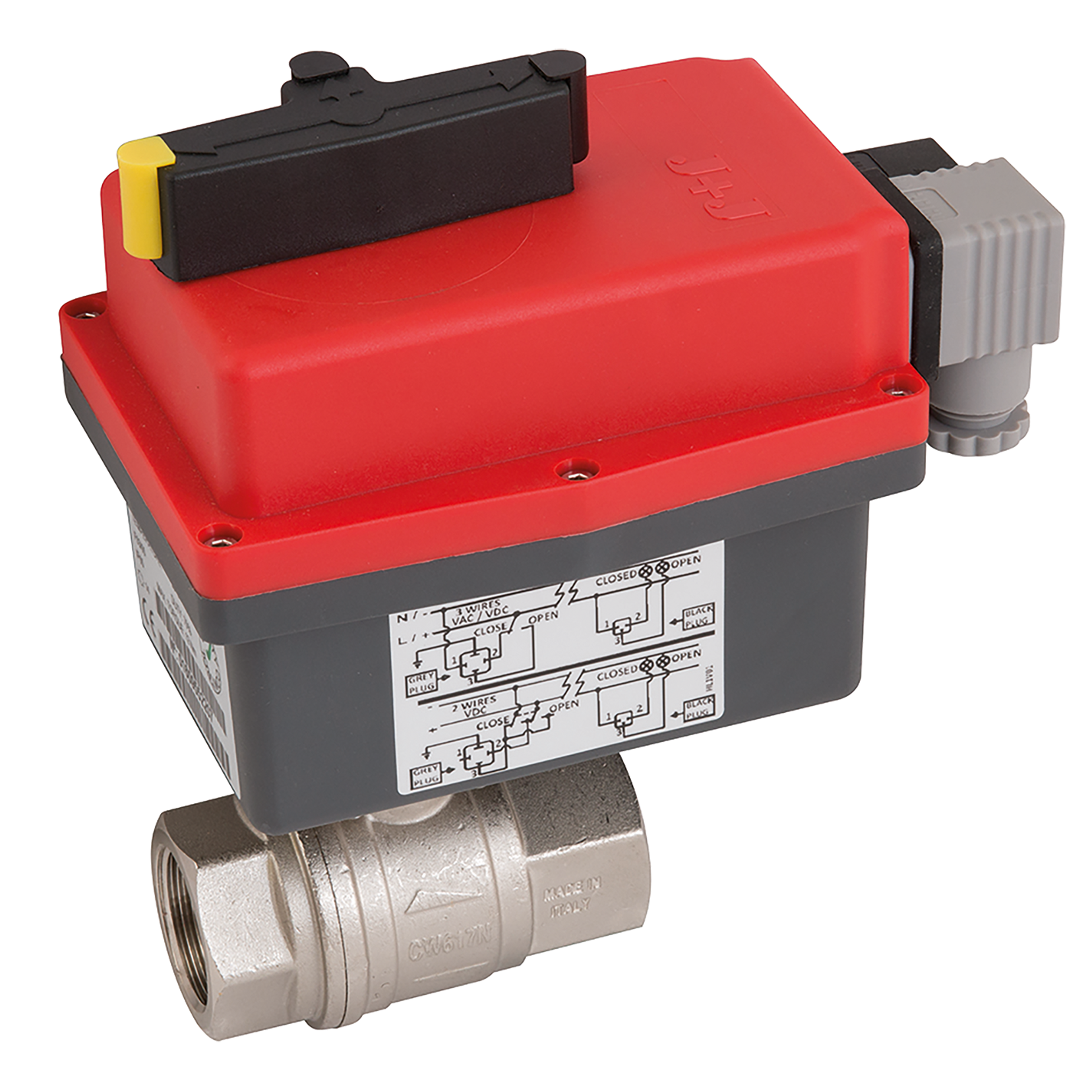

1.1/4" BSP Parallel RuB 6400 Brass WRAS Approved Ball Valve Fitted with a J+J J2 Low Voltage Electric Actuator, J+J

Features: Nickel-plated brass full bore direct mount ball valve. BSPP threads. WRAS approved ball valve. J+J J2-10 electric actuator. L10: 24V DC/V AC 50/60Hz. H10: 110-240V DC/V AC 50/60Hz. Failsafe and/or modulating configurations cannot be used with the J2-10 electric actuator. Sized based on 10 bar wet non-abrasive duty at +70°C.

Additional Variants

Product Name

Prod. Code

List

Discount

Buy

Line

Product Name
J+J 1" 6400 Brass BSP WRAS BV F/W J2L10 Low Voltage Actuator
Prod. Code
L10 6400-1
List
-
Discount
-
Buy
£295.31
Line
£295.31
Available to Order
Product Name
J+J 1/2" 6400 Brass BSP WRAS BV F/W J2L10 Low Voltage Actuator
Prod. Code
L10 6400-34
List
-
Discount
-
Buy
£282.01
Line
£282.01
Available to Order
Product Name
J+J 1/2" 6400 Brass BSP WRAS BV F/W J2L10 Low Voltage Actuator
Prod. Code
L10 6400-12
List
-
Discount
-
Buy
£274.71
Line
£274.71
Available to Order
