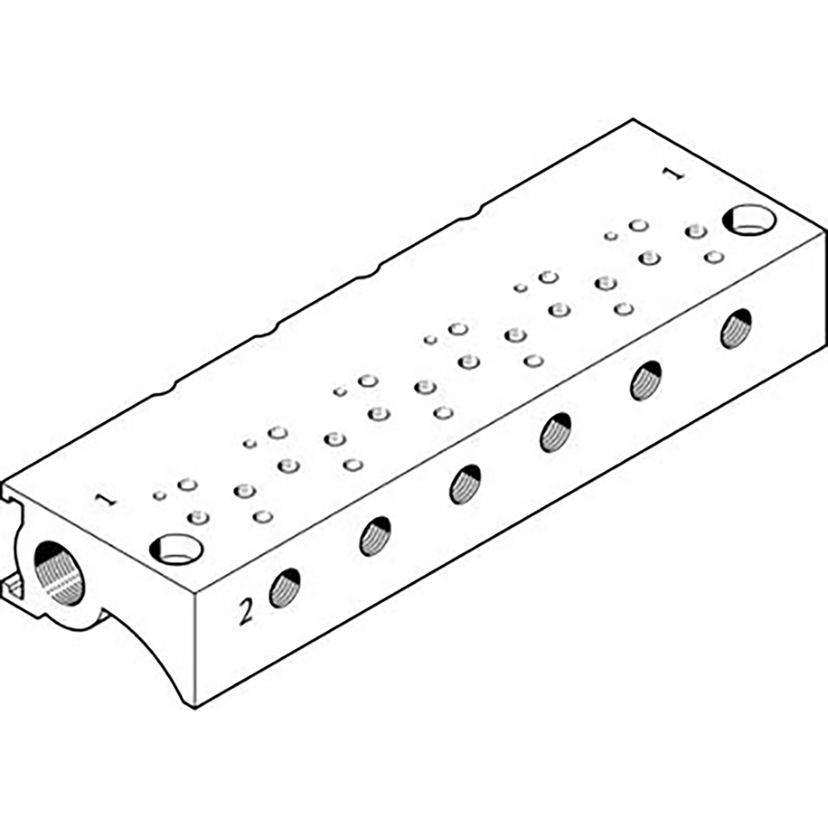

Festo MHA1-P2-2-M3 Manifold Block
Product Code: 197207Manufacturer Code: MHA1-P2-2-M3
...
Details
Number of Positions
2
Thread Size B
M3
Thread Type A
Metric
Working Temperature
-10°C to +60°C
Brand
Festo
Thread Type B
Metric
Material
Wrought Aluminium Alloy
Working Pressure bar
0 to 8
Thread Size A
M7
Specification
Manifold Block Mha1-P2-2-M3 for Manifold Block Valves Mha1-...-Hc/Tc Max. Number of Valve Positions=2, Operating Pressure=0 - 8 bar, Operating Medium=Compressed Air In Accordance with Iso8573-1:2010 [7:4:4], Note On Operating and Pilot Medium=Lubricated Operation Possible (Subsequently Required for Further Operation), Corrosion Resistance Classification Crc=1 - Low Corrosion Stress, Festo
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. Code197210List-Discount-Buy£67.72Line£67.72Available to Order
- Prod. Code197209List-Discount-Buy£56.13Line£56.13
Available to Order
- Prod. Code197208List-Discount-Buy£45.17Line£45.17
Available to Order
- Prod. Code197211List-Discount-Buy£79.35Line£79.35
Available to Order
