Festo 1/4" Service Unit Filter Regulator 40 MM
Product Code: 542295Manufacturer Code: MSB4-1/4:C3J1F3M1-WP
...
Details
Working Pressure bar
1 to 12
Bowl Material
Plastic
Drain Type
Manual Rotary
Series
MS
Thread Type
BSPP
Flow LPM
950
Working Temperature
-10°C to +60°C
Thread Gender
Female
Mounting
Vertical
Brand
Festo
Material
Die-cast Aluminium
Bowl Type
Plastic Bowl Guard
Thread Size
1/4"
Micron
40
Size
4"
Specification

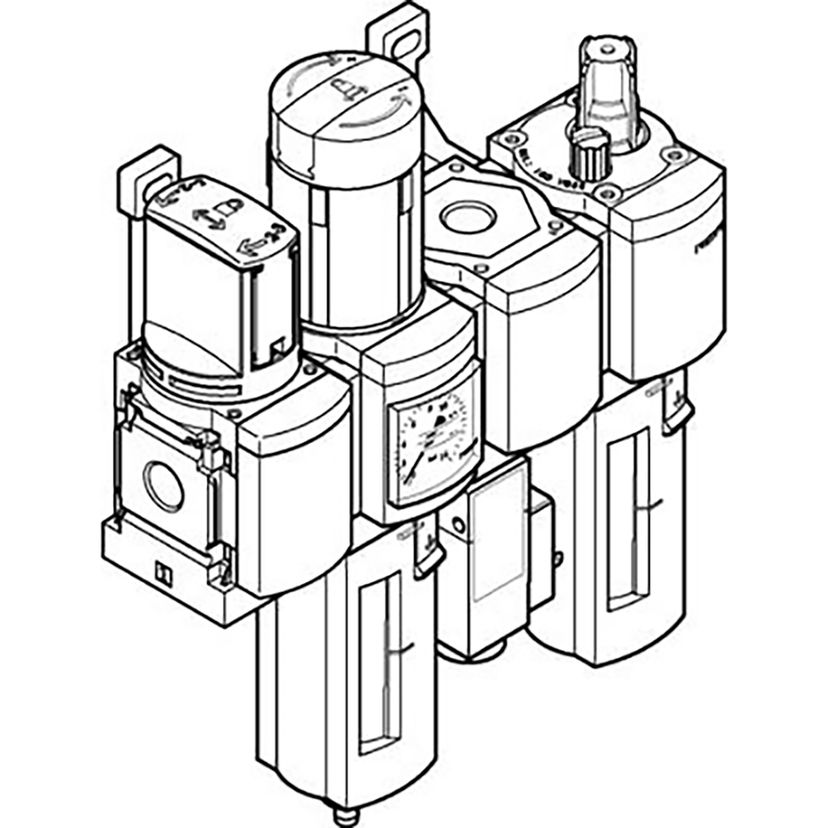

Service Unit Combination MSB4-1/4:C3J1F3M1-Wp Consisting of Manual On-Off Valve, Filter Regulator, Branching Module Including Pressure Switch without Indicator, Lubricator and Wall Mounting Plate. 12 bar Maximum Output Pressure, 40 µm Filter, with Pressure Gauge, Lockable Regulator Head, Plastic Bowl with Plastic Bowl Guard, Manual Condensate Drain, Direction of Flow: From Left to Right. Size=4, Series=MS, Actuator Lock=(* Rotary Knob with Lock, * with Accessories, Lockable), Assembly Position=Vertical +/- 5°, Grade of Filtration=40 µm, Festo
