M326-00033

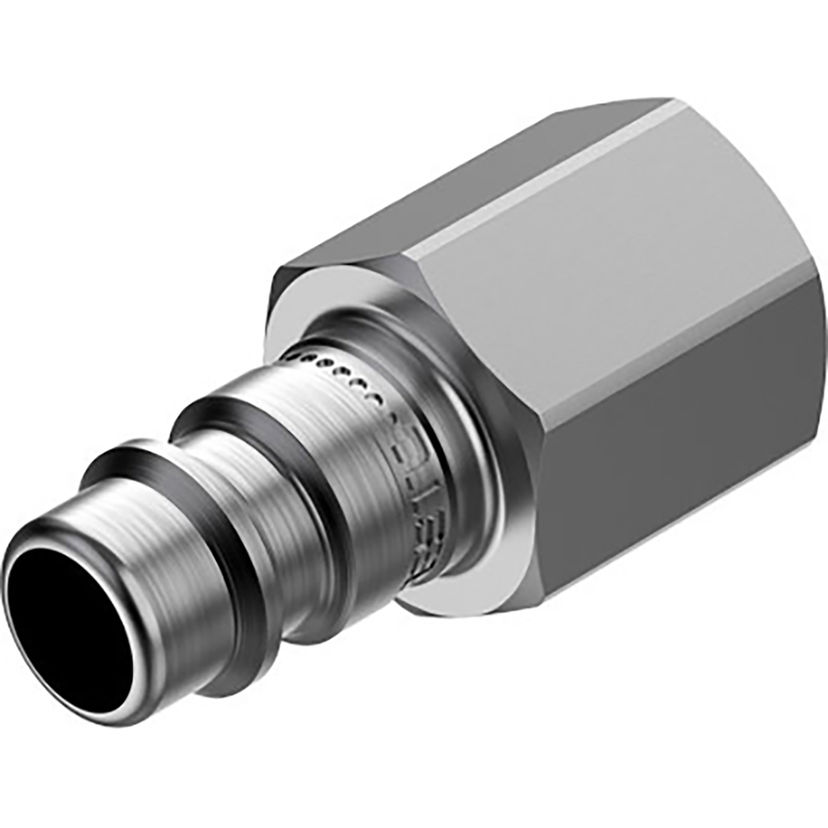

Festo 1/4" BSPP Female Plug Sold in Multiples Of 10 Only

Product Code: 8059262



...

Details

Material
Brass Nickel Plated
Thread Type
BSPP
Working Temperature
-10°C to +60°C
Working Pressure bar
-0.95 to 10
Thread Gender
Female
Body Material
Brass Nickel Plated
Brand
Festo
Thread Size
1/4"

Specification

Quick Coupling Plug Nphs-S6-M-G14F Nominal Size=7,85 Mm, Operating Pressure Complete Temperature Range=-0,95 - 10 bar, Operating Medium=Compressed Air In Accordance with Iso8573-1:2010 [7:-:-], Note On Operating and Pilot Medium=Lubricated Operation Possible, Corrosion Resistance Classification Crc=1 - Low Corrosion Stress, Festo

Safety coupling. Shut-off at one end. Releasing sleeve made of metal or polymer. Exhaust the air on the connector side without releasing the coupling. Can be used as an on-off valve.
