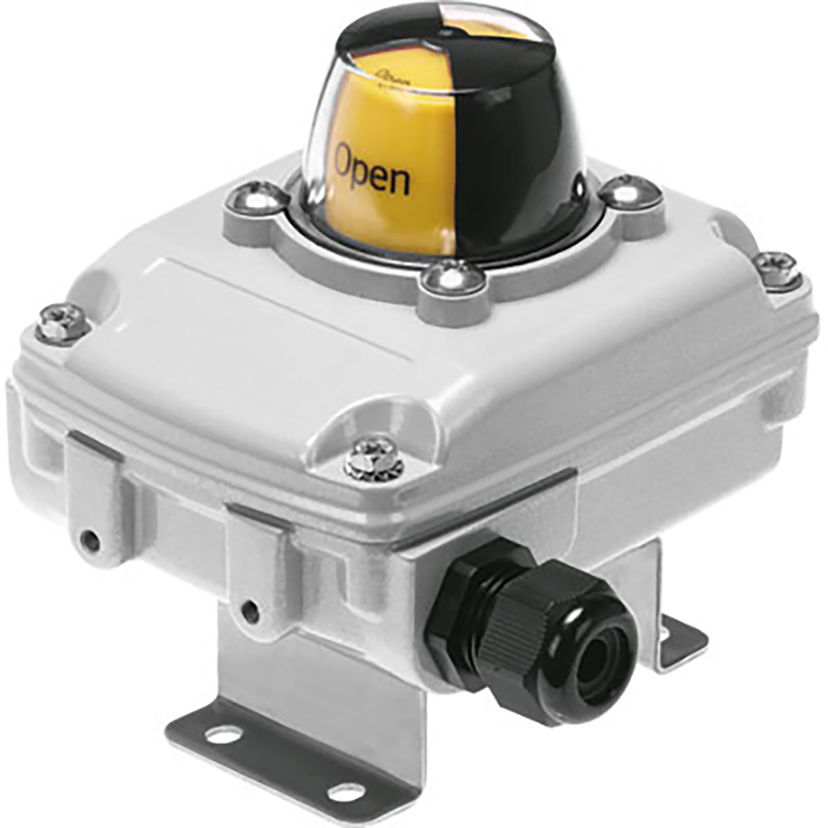

Festo Sensor Box
Product Code: 3482805
...
tech sheet 6263
Details
Material
Die-cast Aluminum
Rotation Angle
0 to 90°
Working Temperature
-20°C to +80°C
Colour
Gray
Brand
Festo
Voltage
0V to 30V
Connecting Cable
M20 x 1.5
Mounting
Any
Seal Material
Nitrile
Specification
Sensor Box Srbc-Ca3-Yr90-Mw-22A-1W-C2P20 For Electrical Feedback And Position Monitoring Of Process Valves Actuated With Pneumatic Quarter Turn Actuators. Authorisation=C Csa Us (Ol), Ce Mark (See Declaration Of Conformity)=(* To Eu Directive Low-Voltage Devices, * In Accordance With Eu Rohs Directive), Kc Mark=Kc-Emv, Materials Note=(* Contains Pwis Substances, * Conforms To Rohs), Safety Integrity Level (Sil)=Sil 2, Festo
Features: Aluminium IP67 enclosure. Beacon indicator. NAMUR and VDI/VDE 3845 mounting bracket. SIL2 rated. Stainless steel shaft. 2 x SPDT 30V DC 250V AC micro switches. 2 x M20 cable entries.
