FT Pro 20" Wafer Butterfly Valve CI/SS/NBR Gear
Product Code: 2014WB 28G
...
Immediately Available - 4 in stock
tech sheet 14
Details
Operation
Gearbox
Brand
FT Pro
Working Temperature
0°C to +80°C
Maximum Working Pressure bar
16
Flange Size Inch
20"
To Suit Flanges
BS 10 Table D/E, PN6, PN10, PN16, ANSI150
Design
Wafer Pattern
Disc Material
Stainless Steel
Body Material
Cast Iron
Liner
NBR
Specification

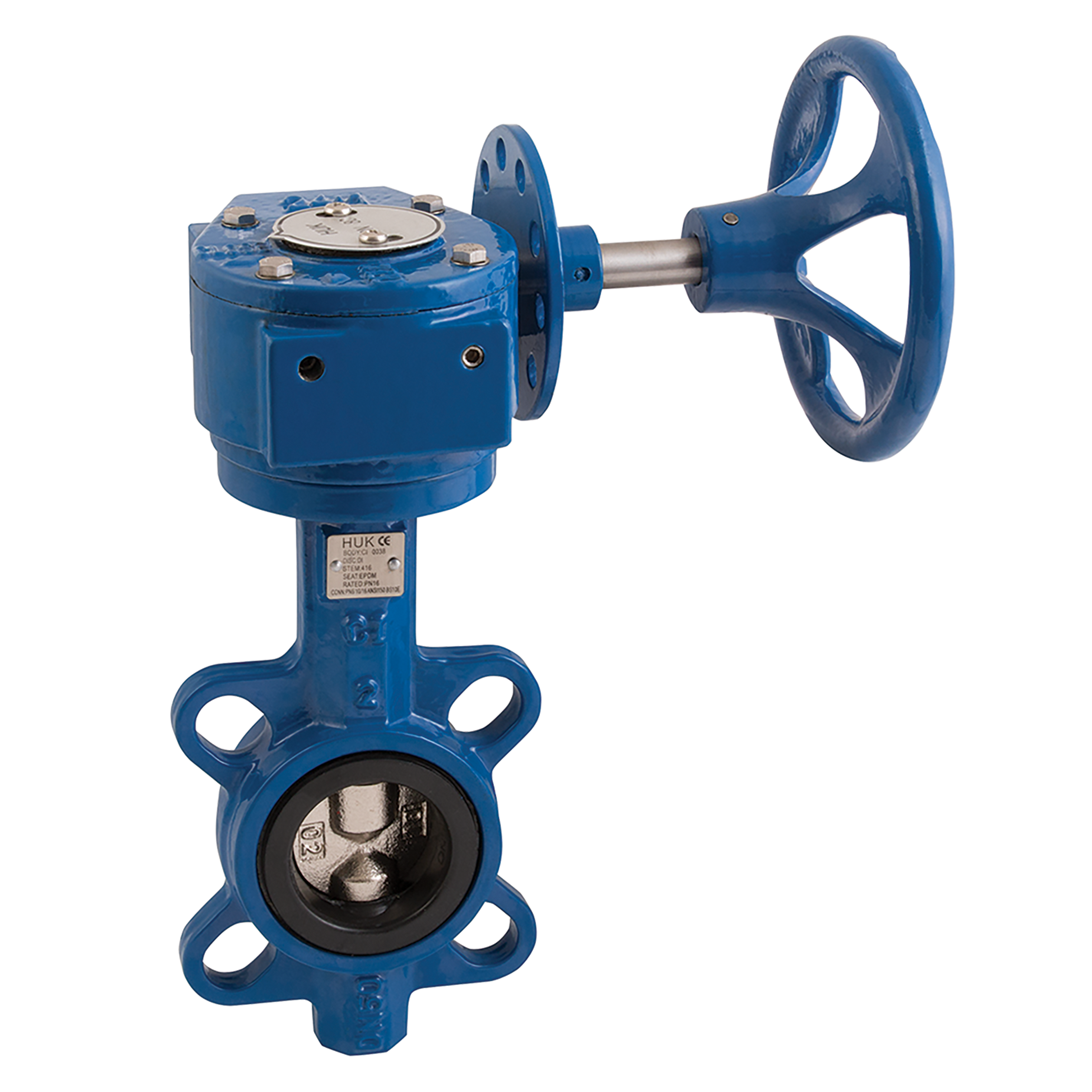

20" Wafer Pattern Cast Iron Body Stainless Steel Disc NBR Liner Butterfly Valve Gearbox Operated, FT Pro Huge Savings! Available for a limited time - while stock lasts
Features: Wafer pattern butterfly valves to suit BS 10 Table D/E, PN6/10/16 and ANSI150 flanges. Available in cast iron, ductile iron, stainless steel or carbon steel body. Stainless steel, ductile iron ENP and aluminium bronze disc options available. Liners available in EPDM, NBR, FPM, silicone or PTFE on silicone. Lockable lever or gearbox operated. WRAS approved valve option available (2014WW).
Additional Variants
Product Name
Product Code
Material
Working Temperature
Flange Size Inch
Buy Price
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
4"
£218.74
Immediately Available - 1 in stock
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
10"
£468.84
Available to Order
–
0°C to +80°C
24"
£3,193.54
Available to Order
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
8"
£392.85
Immediately Available - 20 in stock
–
0°C to +80°C
18"
£2,528.39
Immediately Available - 1 in stock
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
14"
£1,011.27
Immediately Available - 1 in stock
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
2"
£154.28
Available to Order
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
12"
£786.95
Immediately Available - 11 in stock
Cast Iron Body, Stainless Steel Disc
-12°C to +80°C
16"
£2,074.13
Immediately Available - 1 in stock
