M318-31563

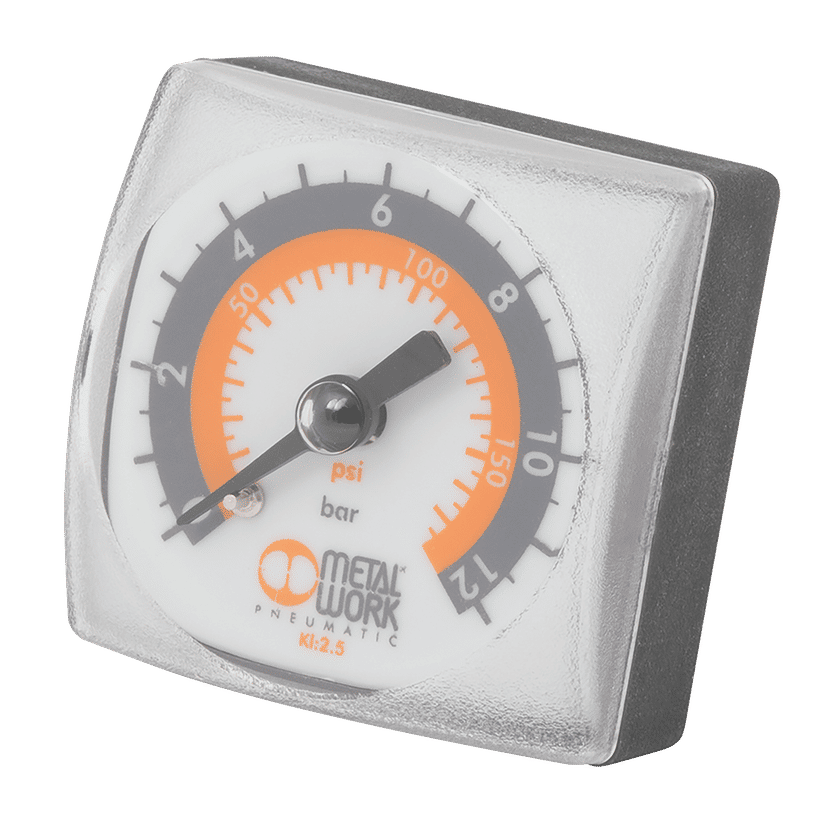

Metal Work Sq Dial Pressure Gauge G1/8" 0-12 Bar

Product Code: 9700110



...

Details

Thread Type
BSPP
Brand
Metal Work
Working Pressure bar
0 to 12
Thread Size
1/8"

Specification

1/8" BSP Parallel Male, Welding Gauge, Acetylene, Bottom Connection, Dry Gauge, 540mm Dial Diameter, Working Pressure 0-30 psi, Working Pressure 0-12 bar, Metal Work

A compact pressure gauge with a square dial suitable for air treatment units. Suitable for use with Metal Work Bit, Syntesi, New Deal and Skillair ranges. A PTFE ring seal mounted on the 1/8" thread of the fiting ensures a perfect pneumatic seal. To mount it, screw the gauge in as far as it will go, then loosen enough to align the dial. A sealant is not required. The pressure gauge has a neck to dampen pressure vibration and absorb water hammer. This improves overall reliability and guarantees longer life.
