M317-87732

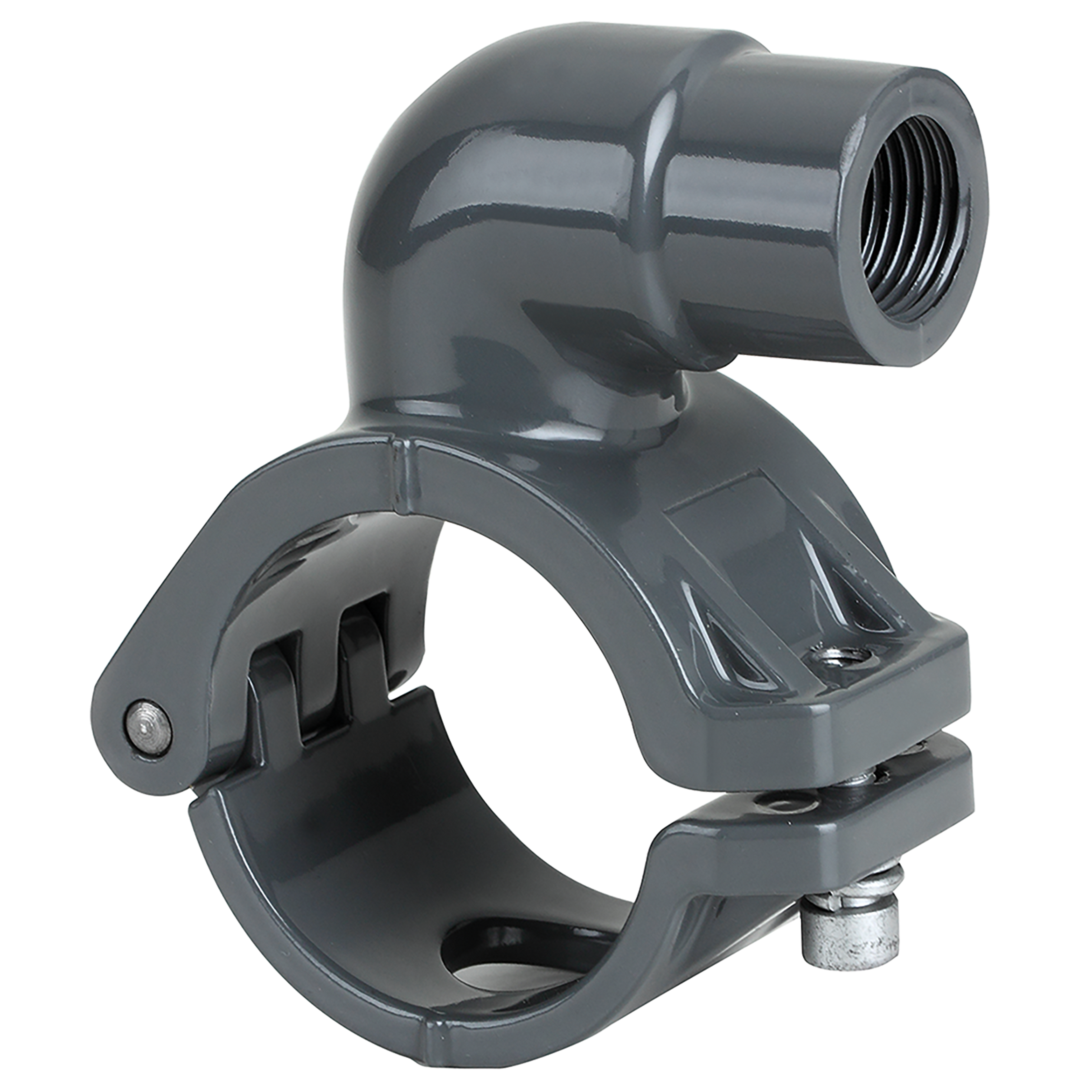

AIRpipe 50MMX3/4" Female AIRPIPE Quick Drop

Product Code: 2009 5111 00



...

tech sheet 10164

Details

Thread Size A
3/4"
Working Temperature
-20°C to 70°C
Outside Diameter A mm
50
Brand
AIRpipe
Maximum Working Pressure bar
13
Thread Gender A
Female
Thread Type A
BSPP

Specification

3/4" BSP Parallel Female x 50mm Outside Diameter, Aluminium Ring Main System, Female x Tube, 90° Quick Drop, Working Temperature -20°C to +70°C, Maximum Working Pressure 13 bar, AIRpipe

4th Generation. Connection Technology. Airpipe, the 4th generation of pipe connection design uses pipe clamps, surface sealing ring and convex pipe as whole parts, which achieves a quick fit with excellent sealing. Compared to an O-type sealing ring, this AIRpipe 4th generation of sealing ring upgrades to surface contact sealing: performance is more reliable and life time doubled compared to line type sealing. Conforms to PED 2014/68/EU (replacing 97/23/EC) and certified by TÜV Rheinland.
