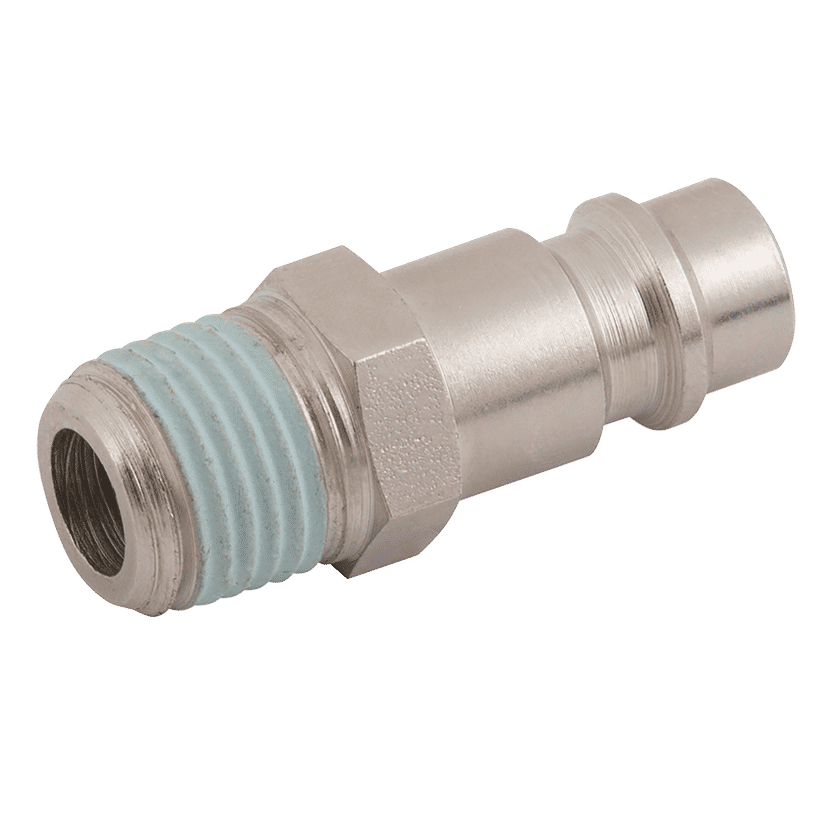

Kee 1/2" BSPT Male Plug
Product Code: 075PNMT12SXN
...
tech sheet 60436
Details
Brand
Kee
Material
Steel Nickel Plated
Working Temperature
-20°C to +100°C
Maximum Working Pressure bar
35
Specification
1/2" BSP Tapered Male, Pneumatic Quick Release, Plug, Series 075 Interchangeable Series 25, Nickel Plated Steel, Nitrile, Working Temperature -20°C to +100°C, Maximum Working Pressure 35 bar, Kee
Back body: Brass (MS 58) nickel plated Valve body: Brass (MS 58) nickel plated Sleeve: Steel nickel plated Spring and looking ring: Stainless steel 301 Locking balls: Stainless steel 301 Seals: Nitrile Plug body: Steel nickel plated Interchangeability: Interchangeable with the Rectus 25 series NW 7.8 Application: 075 series is specially suited to compressed air applications. it's compact dimensions and single-handed operation make it suitable for numerous applications
