M316-46433

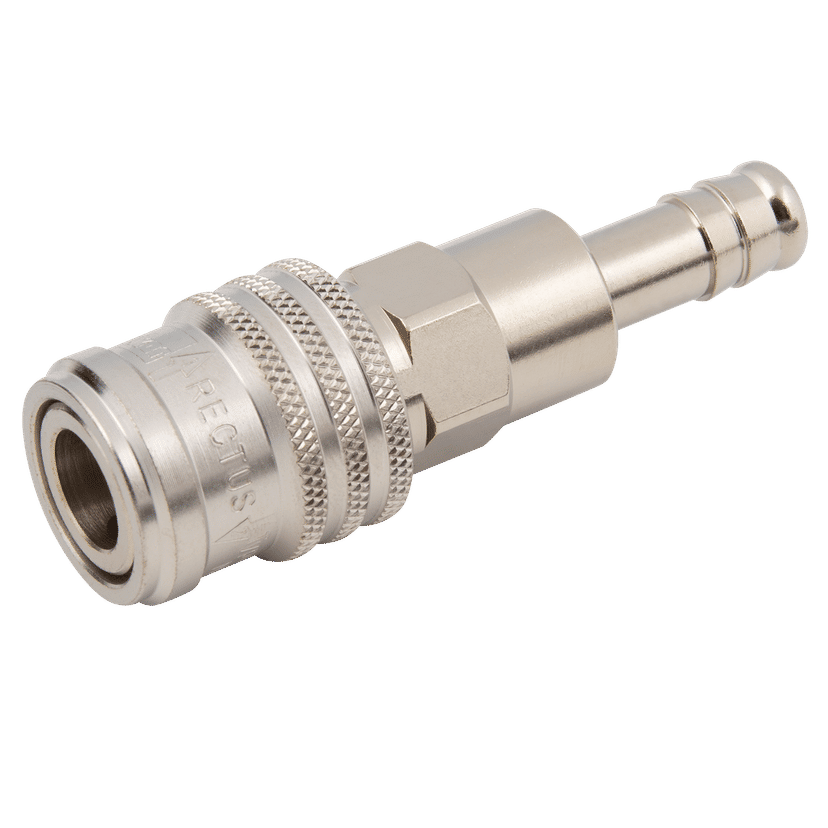

Parker Rectus 10MM Hose Tail Coupler Self Venting

Product Code: 1600KETF10SPN



...

tech sheet 60256

Details

Material
Steel
Maximum Working Pressure bar
12
To Suit ID mm
10
Operation
Valved
To Suit ID inch
3/8"
Working Temperature
-20°C to +100°C
Brand
Parker Rectus
Seal Material
Nitrile

Specification

Pneumatic Quick Release, Series 25KE, Self Venting, Parker Rectus, Coupling, Hose Tail, To Suit Hose Inside Diameter 10mm (3/8"), Valved, Steel, Nitrile Seal, Working Temperature -20°C to +100°C, Maximum Working Pressure 12 bar, Parker Rectus

Interchangeability: Rectus Design. Material: Brass Nickel Plated, Nitrile Seal (Standard Series Coupling). Application: General Purpose Pneumatic Coupling. Self-venting Safety Feature. EN 983 ISO 4414 ISO 6150. New updated version of the 25KE self venting couplings. Still interchangable with the original 25 series couplings.
