Norres 102MM Double Ply SIL Coated Glass Fabric 4M
Product Code: 391-0102-2005
...
Immediately Available - 15 in stock
tech sheet 10426
Details
Maximum Working Pressure bar
1.9
Inside Diameter mm
102
Vacuum bar
0.350
Outside Diameter mm
107
Length Metres
4
Brand
Norres
Weight Kg per Metre
0.770
Working Temperature
-70°C to +260°C
Specification
107mm Outside Diameter x 102mm Inside Diameter, High Temperature Neoprene & Silicone Ducting, SIL 2, 0.770 Kg per Metre, 4 Metres, Maximum Vacuum Pressure 0.350 bar, Working Temperature -70°C to +260°C, Norres

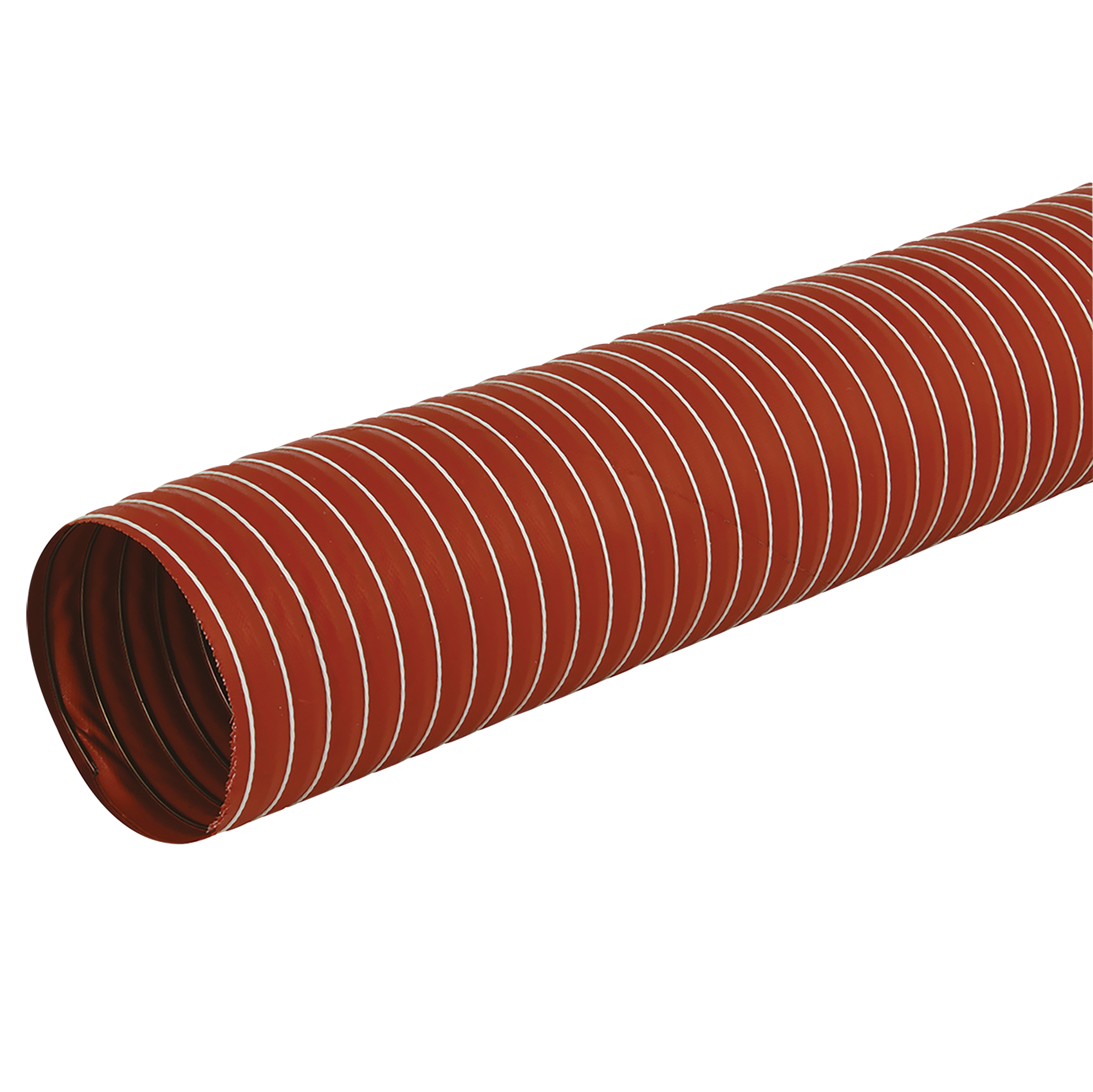

A premium quality silicone-coated fabric ducting with cord reinforcement and spring steel helix. Applications: For air movement and fume extraction where extremes of temperature are involved, e.g. plastic granulate dryers and printing machinery. Extreme temperature range. Double ply construction to give a higher working pressure. Lightweight and highly flexible. Leak proof and kink proof. Smooth bore. Use clamp type 208/211 (please enquire).
Additional Variants
Product Name
Product Code
Outside Diameter mm
Vacuum bar
Inside Diameter mm
Maximum Working Pressure bar
Weight Kg per Metre
Buy Price
68
0.460
63
2.4
0.490
£325.08
Immediately Available - 5 in stock
133
0.230
127
1.4
0.930
£564.34
Available to Order
81
0.430
76
2.1
0.580
£364.07
Immediately Available - 4 in stock
43
0.600
38
2.6
0.310
£239.52
Available to Order
56
0.520
51
2.6
0.360
£277.72
Immediately Available - 13 in stock
158
0.170
152
1.2
1.200
£644.77
Immediately Available - 6 in stock
209
0.090
203
0.7
1.650
£779.91
Immediately Available - 5 in stock
