M316-30684

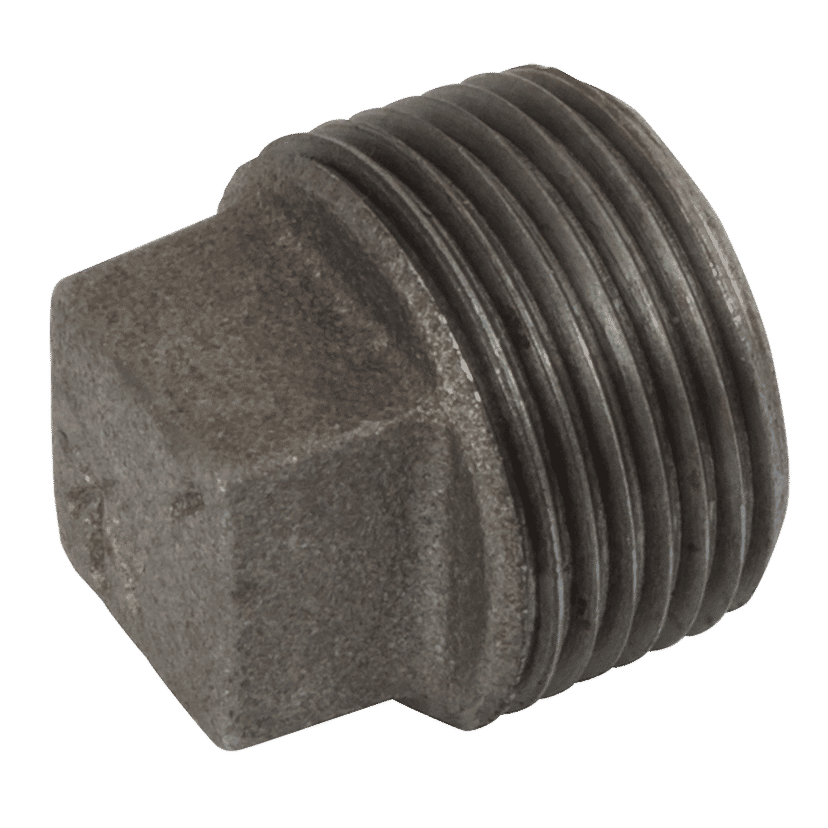

K-Line Connect (BS FIG148) BSPT Solid Plug 1/4 Black

Product Code: K-MI291S-14N



...

tech sheet 20450

Details

Brand
K-Line Connect
Working Temperature
-20°C to 120°C
Thread Size A
1/4"
Thread Gender A
Male
Thread Type A
BSPT
Maximum Working Pressure bar
25

Specification

1/4" BSP Tapered Male, Malleable Iron Pipe Fitting, Black, Plain Solid Plug, Fig. 148, Working Temperature -20°C to +120°C, Maximum Working Pressure 25 bar, K-Line Connect

Threads: British standard taper, BSPT to ISO7-1 and EN10226-2. Materials: Suitable for fire protection, automatic sprinkler systems NFPA 13/24 and fittings for above ground. Fittings tested in accordance to BS EN10241:2000, BS EN1562 and dimensions to BS EN10242. Media: Suitable for the flow of water, steam, gas or other non aggresive media. Suface Finishing: Two types are available: Black: With an anti-corrosive varnish to protect against rust after installation prior to plant conditioning. Galavanised: Hot-dip zinc coated to give additional resistance to corrosion, meeting the requirements of ASTM A153. WRAS Approved Product. K-Line Connect Kitemarked fittings are deemed to satisfy the requirements of the United kingdom Water Regulations (Byelaws).
