M316-14449

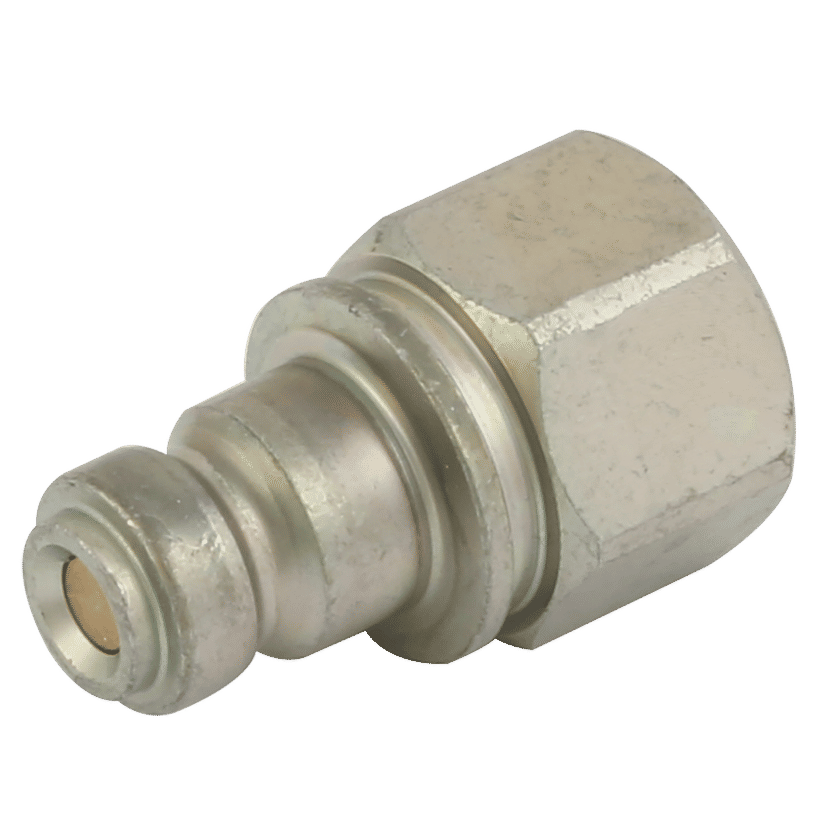

dnp 3/8" NPT Female Hydraulic Quick Release Plug

Product Code: PCJ5.0610.013



...

tech sheet 20488

Details

Maximum Working Pressure bar
1000
Thread Size
3/8"
Thread Gender
Female
Material
High Resistance Steel
Working Temperature
-35°C to +130°C
Operation
Valved
Thread Type
NPT
Series
Ultra High Pressure
Brand
dnp

Specification

3/8" NPT Female, Valved, Hydraulic Quick Release, Plug, Nitrile, Ultra High Pressure, PCJ5 Series, High Resistance Steel, Special Compound Seal, Working Temperature -35°C to +130°C, Maximum Working Pressure 1000 bar, dnp

DNP Standard, 15,000 psi / 1.000 bar working pressure, High resistance steel, Locking radial balls, Connection under pressure not allowed. Tested 100% with Helium at low and high pressure. PCJ5 series series is ideal for High Pressure tools and Torque Equipment. Occlusion: poppet, Locking: radial balls, Material: high resistance steel, Finishing: Zn-Fe (Cr III), Available Threads: BSPP, NPT, Standard Seals: special compound, Safety Factor: 1:2,5, Test: with helium, 100% at low and high pressure, Connection Under Pressure: not allowed
