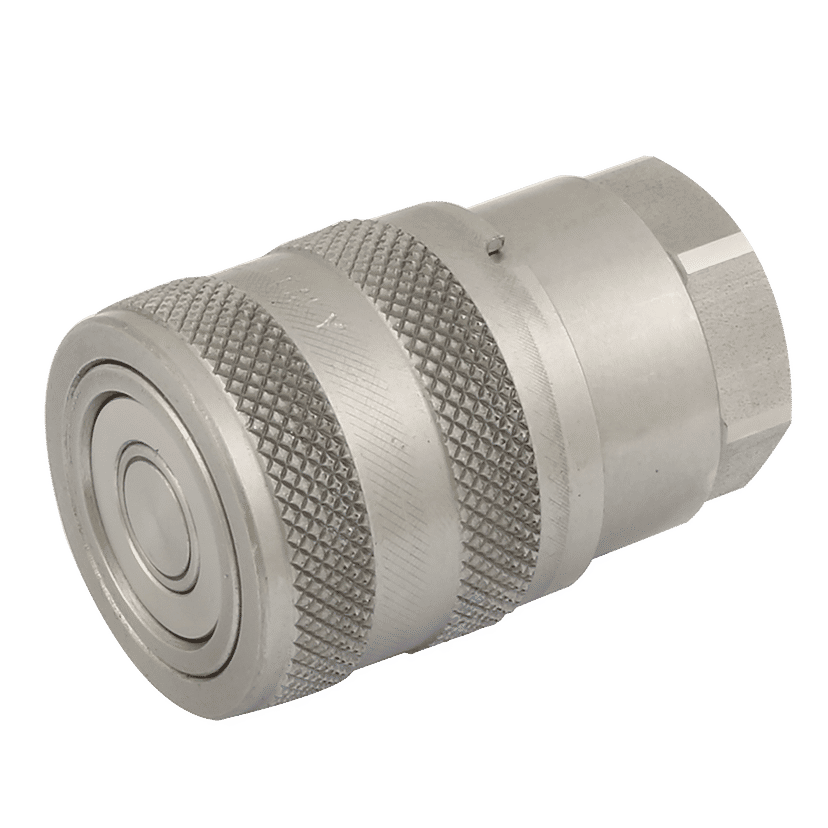

dnp 1" BSP Female Hydraulic Quick Release Coupling
Product Code: PLSX.2525.112
...
Immediately Available - 6 in stock
tech sheet 20485
Details
Thread Size
1"
Material
Stainless Steel
Series
PLSX
Maximum Working Pressure bar
350
Working Temperature
-25°C to +100°C
Thread Type
BSPP
Thread Gender
Female
Operation
Valved
Seal Material
Viton
Brand
dnp
Specification
1" BSP Parallel Female, Valved, Hydraulic Quick Release, Coupling, Flat Face, PLSX Series, 316 Stainless Steel, Viton Seal, Working Temperature -25°C to +100°C, Maximum Working Pressure 350 bar, dnp
Interchange: Snap-Tite 71, Occlusion: flat face, Locking: radial balls, Material: stainless steel AISI 316, Available Threads: BSPP, NPT, Standard Seals: Viton, Optional Seals: Viton, EPDM, Connection Under Pressure: not allowed
Additional Variants
Product Name
Product Code
Thread Size
Buy Price
3/4"
£362.65
Available to Order
1.1/4"
£451.46
Available to Order
1/2"
£275.76
Available to Order
1/4"
£160.94
Available to Order
1/2"
£195.42
Available to Order
3/8"
£249.13
Available to Order
