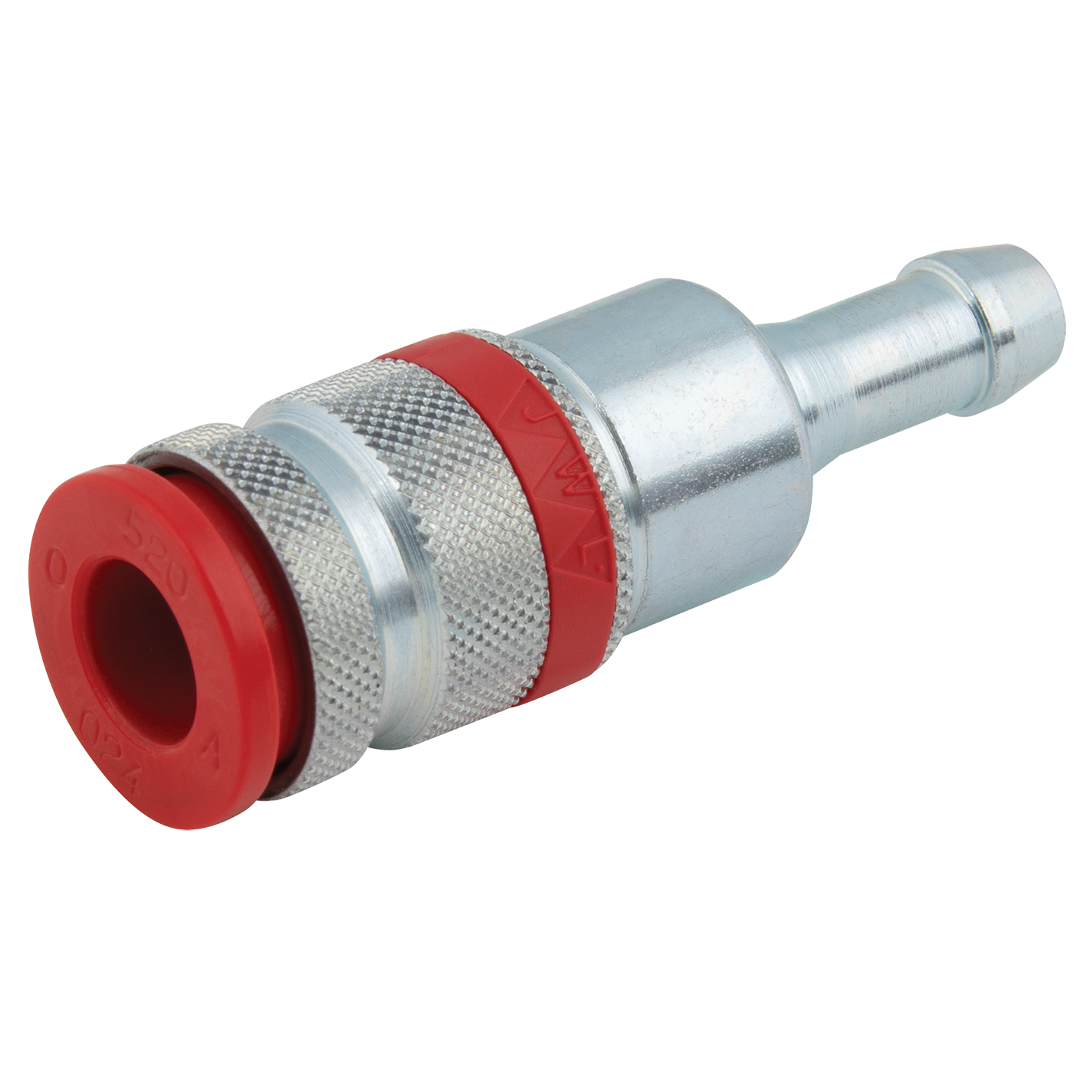

JWL 10MM Hose Tail Euro 520 Coupling
Product Code: 52002411
...
Available to Order
Details
Working Temperature
-20°C to +60°C
Brand
JWL
Maximum Working Pressure bar
35
Material
Steel Galvanised
Specification
Pneumatic Quick Release, Valved, Coupling, Hose Tail, Series 520, Euro Profile, to Suit 10mm (3/8") Hose Inside Diameter, Galvanised Steel, Nitrile Seal, Working Temperature -20°C to +60°C, Maximum Working Pressure 35 bar, JWL
Interchangeability: Rectus 25, 26 and 1600, Legris 94xx A, Oetiker SC Series C, Prevost ESC07/ERC07, JWL 530 and 570. Material: Galvanised steel body, acetal plastic ball cage, NBR seal. Application: General purpose lightweight pneumatic coupling for heavy-duty use. Nominal Diameter: 7.8mm. Flow Rate: 2100 l/min (7 bar, dP 0.5 bar).
Additional Variants
Product Name
Product Code
Buy Price
£20.83
Available to Order
£20.83
Available to Order
