M315-04152

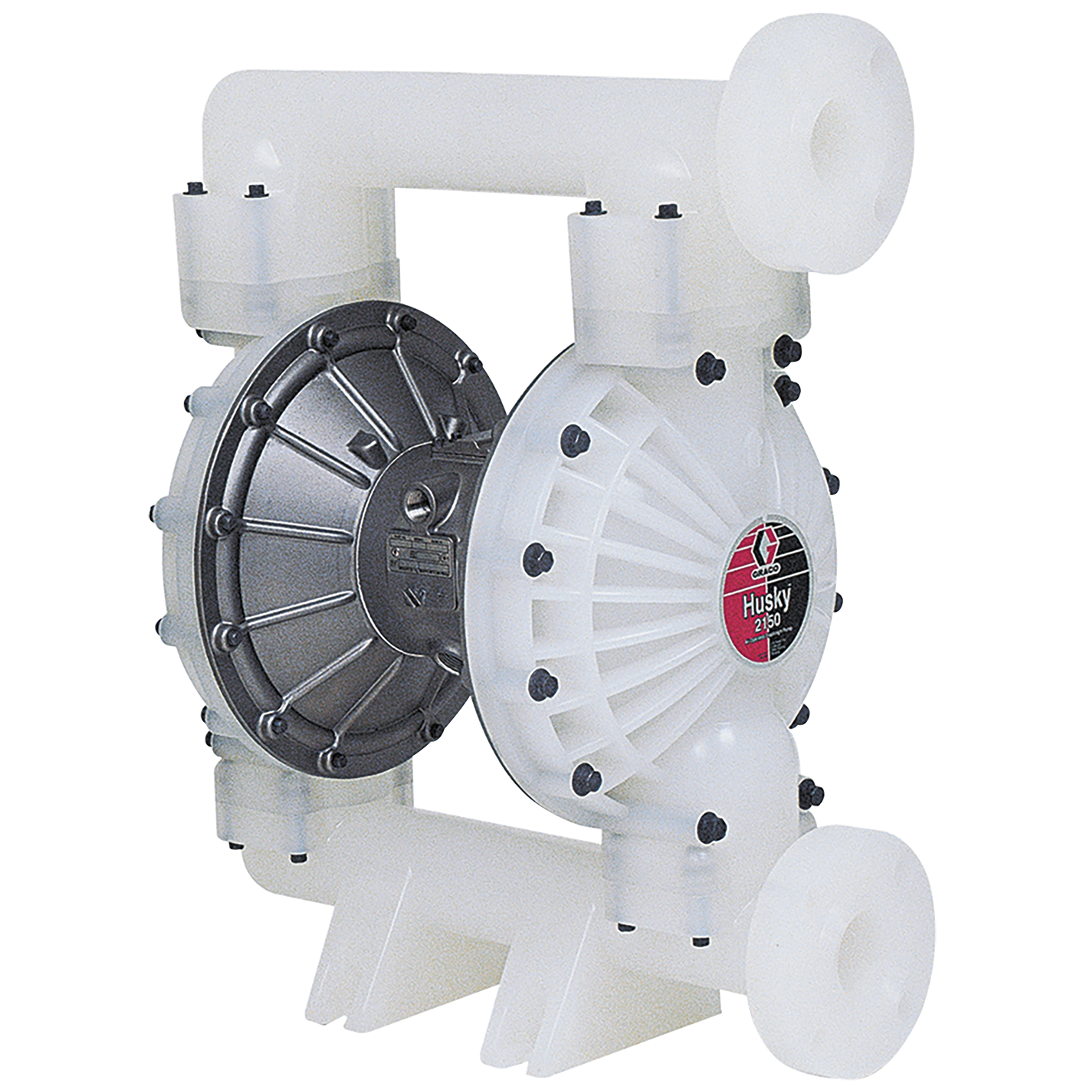

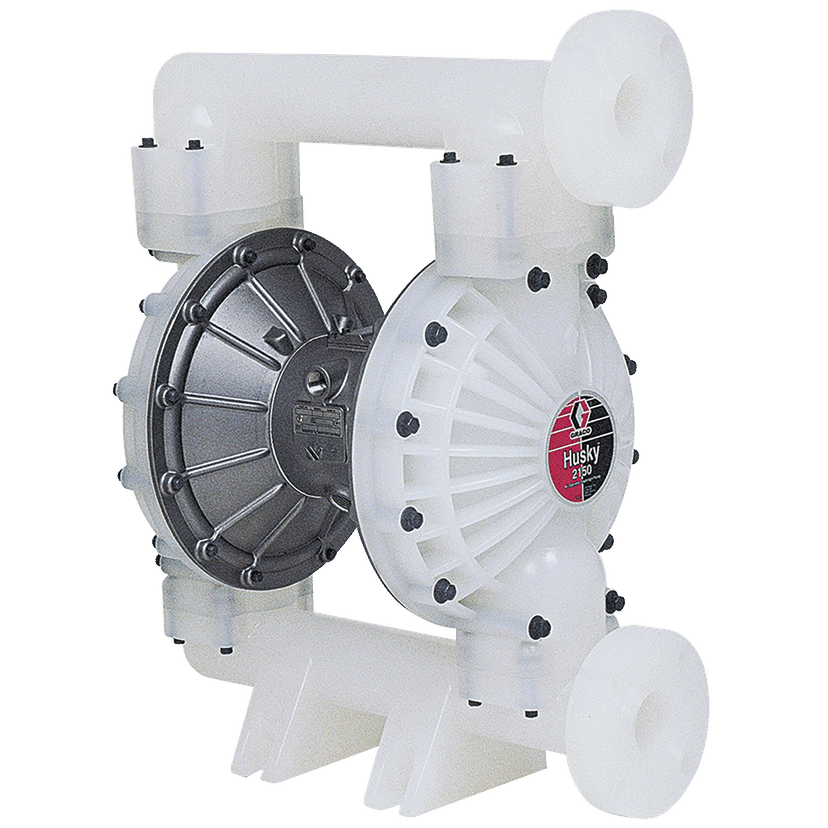

Graco Husky 2150 Pump Geolast DIA Aluminium Body

Product Code: DFCGGG



...

Details

Flow LPM
568
Maximum Working Pressure bar
8.4
Seat Material
Geolast
Brand
Graco
Body Material
Aluminium
Ball Material
Geolast
Diaphragm Material
Geolast

Specification

2" BSP Parallel End Porting, Husky 2150, Air Operated Double Diaphragm Pump, Aluminium Body, Geolast Seat, Geolast Ball, Geolast Diaphragm, Flow 568 Litres Per Minute, Maximum Working Pressure 8.4 bar, Graco

Typical Applications: Drum fluid transfer. Bulk fluid supply. Chemical evacuation. Ground water and sump evacuation. Waste Fluid Removal. Tank and bilge drainage. Slurry and sludge transfer. Filter press feed. Typical Fluids Handled: Acids alkalies, slovents, suspensions, dispersions, electroplating baths, paints, varnishes, resisns, altex, adhesives. Ship, cleaning and stripping chemicals. Features: 2" (50.8mm) ANSI end -porting. Larger paorts for more flow - up to 150gpm (586 L/min). Fluid p[ressure to 120 psi (8.4 bar, 0.84MPa). Lube-free operation. Patented, high-reliability "closed cntre" air valve is "online" serviceable. Epoxy-coated air section for tough enviromental conditions. Can also be remotely-controlled using an external controller.
