M315-03972

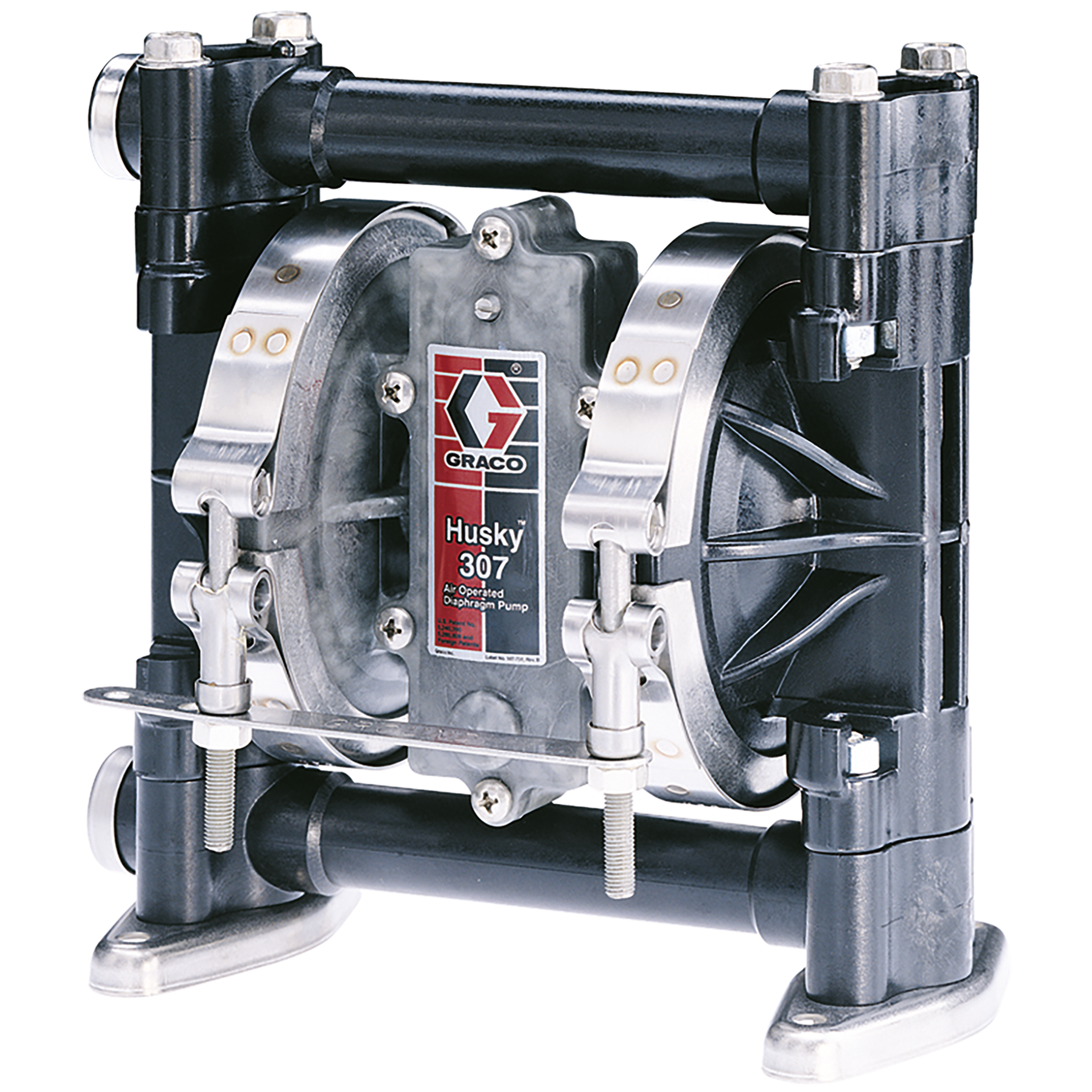

Graco Husky 307 Pump Hytrel Diaphragm Polyprop Body

Product Code: D3B955



...

Details

Flow LPM
26
Brand
Graco
Diaphragm Material
Hytrel
Seat Material
Polypropylene
Ball Material
Hytrel
Body Material
Polypropylene

Specification

3/8" BSP Parallel End Porting, Husky 307, Air Operated Double Diaphragm Pump, Polypropylene Body, Polypropylene Seat, Hytrel Ball, Hytrel Diaphragm, Flow 26.5 Litres Per Minute, Graco

Typical Applications: Drum transfer for fluids up to 100 centipoise. Circulation of low viscosity inks, stains and dyes. Coolant circulation and evacuation. Waste fluid removal. On-demand batch chemical metering. Low viscosity andhesisve supply. Consistent low pressure air spray or HVLP supply. Typical Fluids Handled: Paints. Lubricants. Inks. Stains. Solvents. Coatings. Dyes. Features: 3/8" (9.52mm) end porting. Fully-groundable acteal model. Operateson as little as 20 psi (1.4bar, 0.14 MPa) air pressure. Delivery up to 7 gpm (26.5 L/min). Easy-to-service air valve and ball checks. Quiet operation - 75 dBa at 50 psi (3.5 ba, 0.35 MPa) and 60 com.
