M314-66832

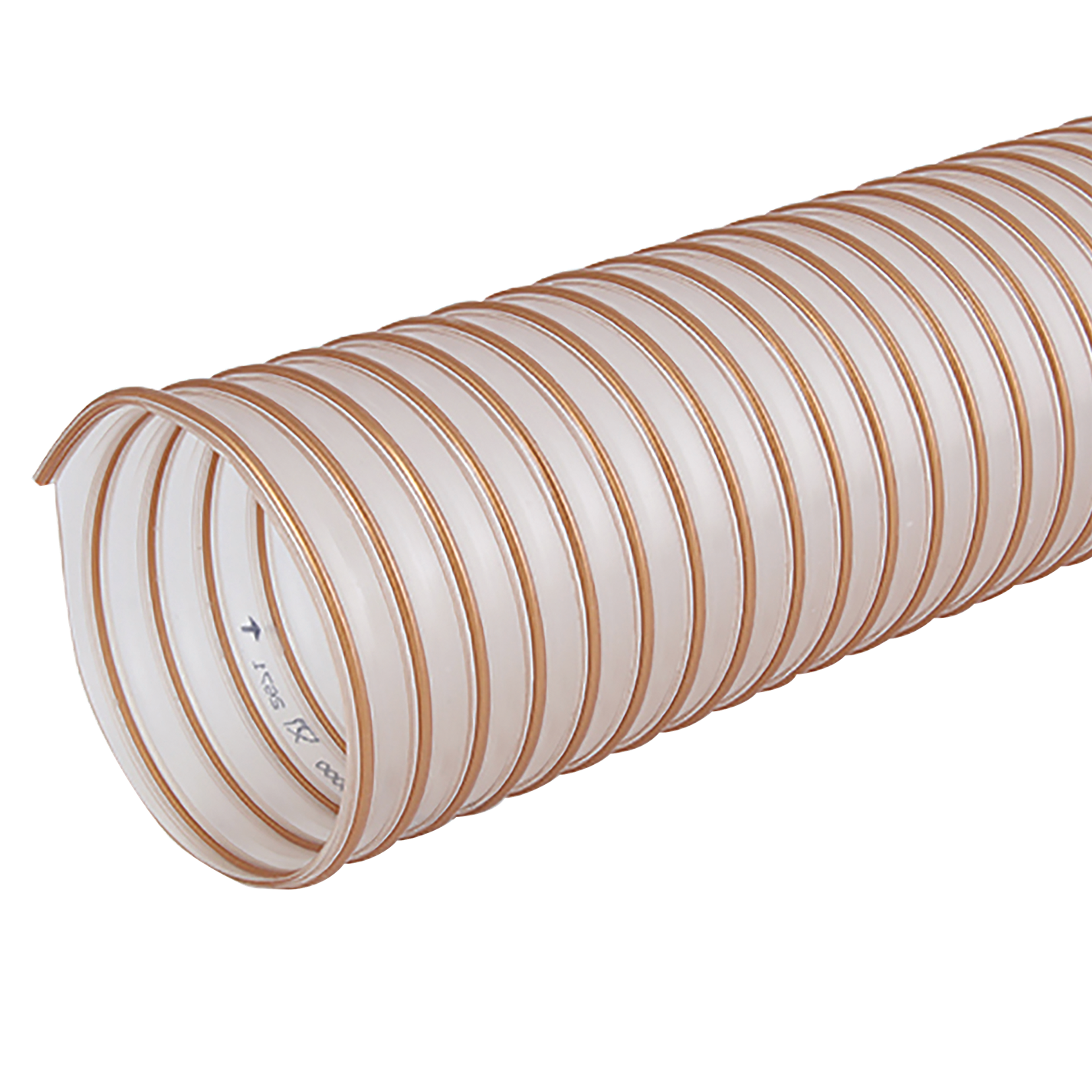

Norres 75MM PUR 1.0MM Wall FG 10M

Product Code: 351-0075-0000



...

tech sheet 10405

Details

Weight Kg per Metre
0.640
Outside Diameter mm
84
Working Temperature
-40°C to +90°C
Length Metres
10
Inside Diameter mm
75
Maximum Working Pressure bar
0.945
Brand
Norres
Wall Thickness mm
1
Vacuum bar
0.140

Specification

84mm Outside Diameter x 75mm Inside Diameter, Food Grade Hose & Ducting, 10 Metres, AIRDUC PUD 351 FOOD, Wall Thickness 1mm, Weight 0.640 Kg per Metre, Maximum Vacuum Pressure 0.140 bar, Working Temperature -40°C to +90°C, Working Pressure 0.945 bar, Norres

Made from premium food grade ether Pre-PUR polyurethane, reinforced with a spring steel wire helix. Wall Thickness: Suction and transport hose for abrasive materials including food products, e.g. powders, granules, seeds, grain, etc. Also suitable for liquid media. food grade wall (refer to Tech Sheet for food approvals information). Good resistance to microbes and hydrolysis. Wire spiral reinforcement can be earthed. Good resistance to oil, petrol and chemicals. High tensile strength and tear resistance. Smooth bore, optimised flow (observe directions of flow arrow). Small Bend randius. Excellent low temperature flexibility. Flame retardant to UL94-HB. Use clamp type 212/212EC (refer to page 488).
