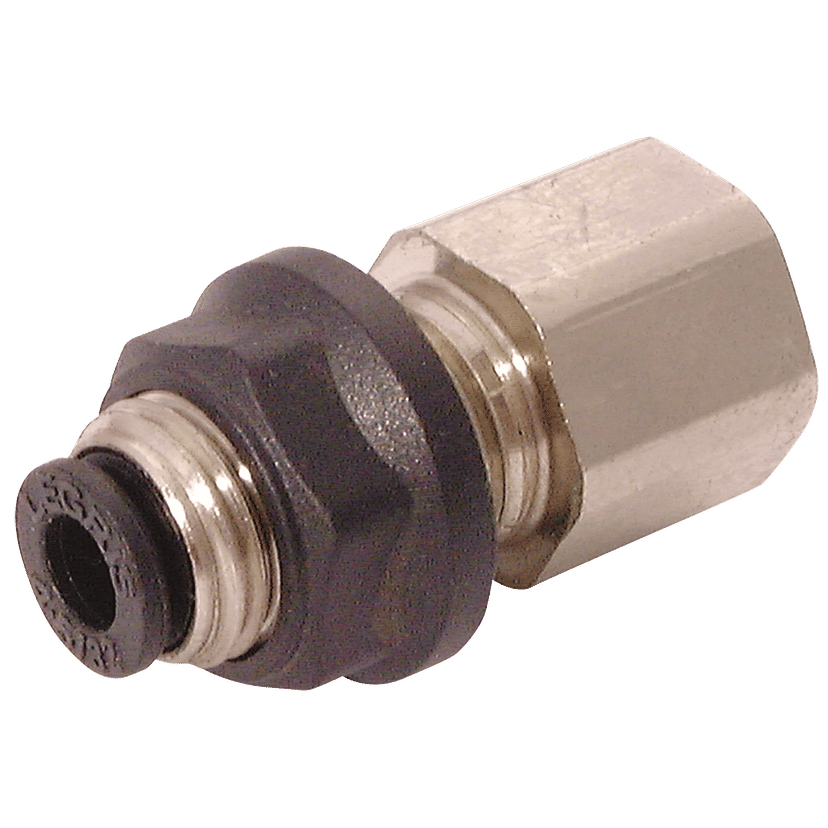

Parker Legris 1/2" BSPP Female X 12MM OD Bulkhead
Product Code: LE-3136 12 21
...
tech sheet 10626
Details
Material
Brass Nickel Plated
Outside Diameter mm
12
Maximum Working Pressure bar
20
Working Temperature
-20°C to +80°C
Series
LF3000
Brand
Parker Legris
Specification
1/2" BSP Parallel Female x 12mm Outside Diameter, Bulkhead, Push Fitting, Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, Parker Legris
Vacuum Capability: Vacuum of 755mm Hg (99% vacuum). Suitable Fluids: Compressed Air, LF 3000 can also be used for conveying various types of liquids (water, cutting oil, etc) for industrial applications. The working pressure, from 0.6-10 bar and temperatures from 0-60°C, are dependent upon the fluid conveyed and the type of O-Ring used. Silicone Free.
Additional Variants
Product Name
Prod. Code
List
Discount
Buy
Line
Prod. CodeLE-3136 12 17List-Discount-Buy£20.34Line£20.34Immediately Available - 1 in stock
- Prod. CodeLE-3136 16 21List-Discount-Buy£50.12Line£50.12
Available to Order
- Prod. CodeLE-3136 08 13List-Discount-Buy£11.25Line£11.25
Immediately Available - 2 in stock
- Prod. CodeLE-3136 06 17List-Discount-Buy£10.57Line£10.57
Immediately Available - 8 in stock
- Prod. CodeLE-3136 04 10List-Discount-Buy£7.14Line£7.14
Immediately Available - 4 in stock
- Prod. CodeLE-3136 08 10List-Discount-Buy£10.65Line£10.65
Available to Order
- Prod. CodeLE-3136 06 13List-Discount-Buy£8.94Line£8.94
Immediately Available - 3 in stock
- Prod. CodeLE-3136 06 10List-Discount-Buy£10.06Line£10.06
Immediately Available - 14 in stock
- Prod. CodeLE-3136 10 17List-Discount-Buy£14.85Line£14.85
Immediately Available - 4 in stock
