M313-28925

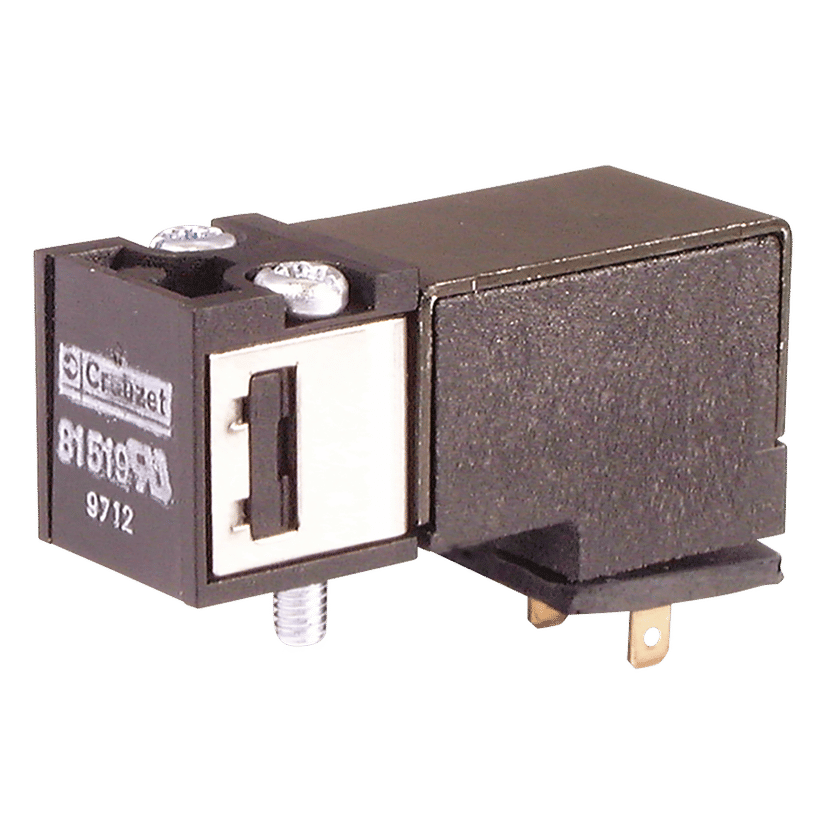

Crouzet 3/2 N/C w/o Manual Override

Product Code: CZT-81 519 032



...

tech sheet 1515

Details

Working Pressure bar
1 to 8
Brand
Crouzet
LPM
25
Flow LPM
25
Voltage
24VDC
Type
3/2 NC without Manual Override

Specification

Interface Modular Valve Range, Miniature Solenoid Valve & Sub-base, 3/2 NC without Manual Override, 24VDC, 25 Litres per Minute, Coil Consumption 1W, Working Pressure 1 to 8 bar, Crouzet

Ideal for DIN rail mounting applications. Mechanical life 5 x 107. Switching time 5 to 15ms. IP Rating when used with sub-base IP20. IP Rating when used with DIN connector IP65. Note: Flow Rate Based on 6 bar. Coil Consumption: 1W Voltage: 24V DC LPM: 25 L/min.
