Seagull Fittings Logo
M311-06529

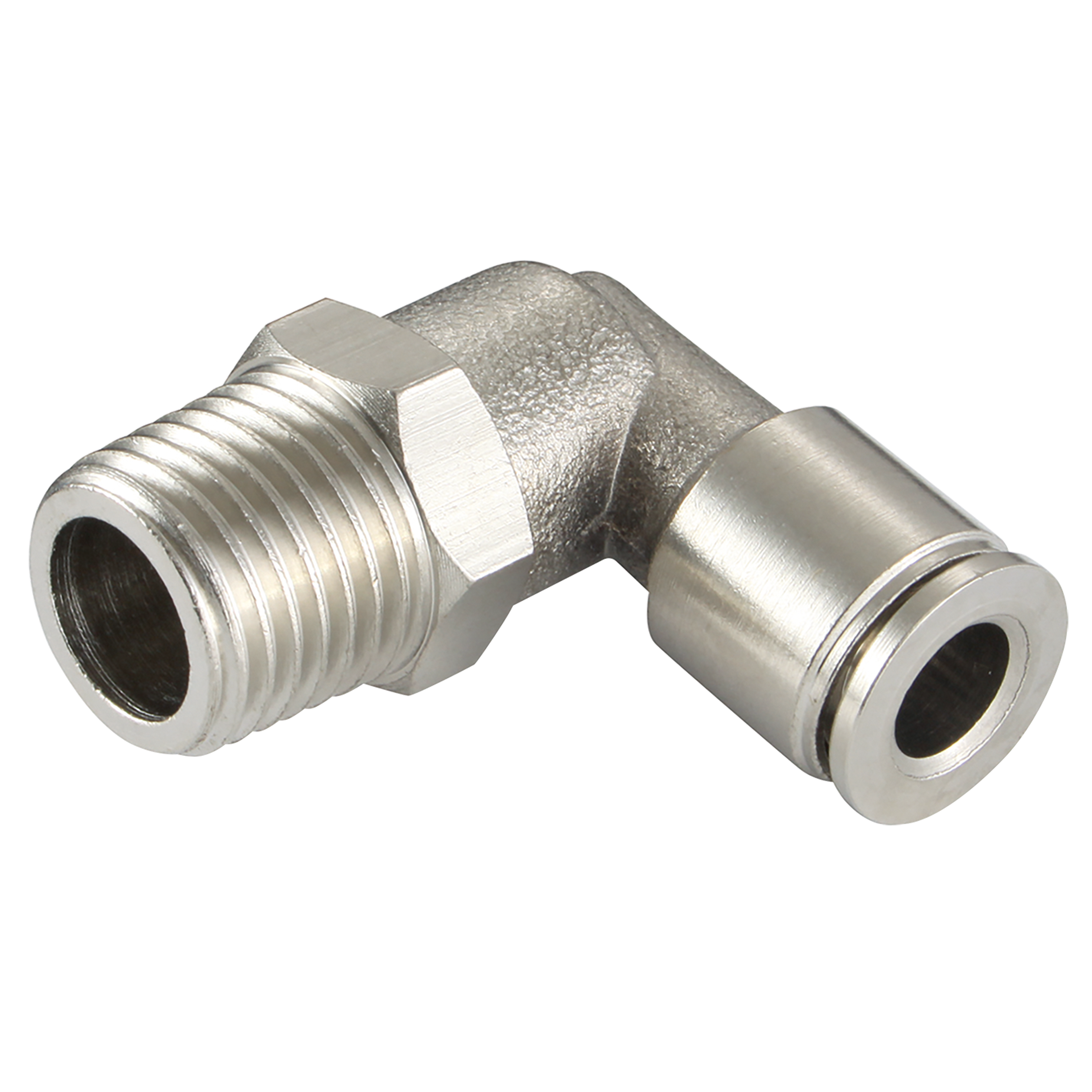

FT Pro 3/8" Super Thread Male X 14MM OD Hex Swivel Elbow

Product Code: 5711114-3/8

Buy Price(exc VAT)

tech sheet 3130

Details

Brand
FT Pro
Material
Plastic/Brass Nickel Plated
Thread Size
3/8"
Thread Type
Super Thread
Maximum Working Pressure bar
20
Angle
90°
Thread Gender
Male
Working Temperature
-20°C to +80°C
Series
One Touch
Outside Diameter mm
14

Specification

3/8" Super thread Male x 14mm Outside Diameter, 90° Hex Swivel Elbow, Push Fitting, Plastic/Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, FT Pro

Tube connection and disconnection can be repeated several times and is performed with one hand, without the use of tools. Nickel-plated brass bodies ensures anti-corrosion and anti-contamination. Material: Body & Collet: Nickel plated brass. O-Ring: Nitrile. Threads: BSPT, BSPP & Metric. Tube to Connect: PU, PE, Nylon 6-11-12. Fluid: Compressed air.

Additional Variants

Product Name
Product Code
Thread Type
Outside Diameter mm
Working Temperature
Series
Material
Maximum Working Pressure bar
Thread Size
List Price
M311-06529

FT Pro 12MM OD X 1/2" BSPT Male Stud Elbow

MPL12-04
BSPT
12
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/2"

Immediately Available - 442 in stock

M311-06529

FT Pro 6MM OD X 1/4" BSPT Male Stud Elbow

MPL6-02
BSPT
6
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/4"

Immediately Available - 2041 in stock

M311-06529

FT Pro 1/2" Super Thread Male X 14MM OD Hex Swivel Elbow

5711114-1/2
Super thread
14
-20°C to +80°C
One Touch
Plastic/Brass Nickel Plated
20
1/2"

Immediately Available - 78 in stock

M311-06529

FT Pro 8MM X 3/8" BSPT Male Stud Elbow

MPL8-03
BSPT
8
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
3/8"

Immediately Available - 205 in stock

M311-06529

FT Pro 12MM OD X 1/4" BSPT Male Stud Elbow

MPL12-02
BSPT
12
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/4"

Immediately Available - 186 in stock

M311-06529

FT Pro 12MM OD X 3/8" BSPT Male Stud Elbow

MPL12-03
BSPT
12
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
3/8"

Available to Order

M311-06529

FT Pro 6MM OD X 1/8" BSPT Male Stud Elbow

MPL6-01
BSPT
6
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/8"

Immediately Available - 902 in stock

M311-06529

FT Pro 10MM OD X 3/8" BSPT Male Stud Elbow

MPL10-03
BSPT
10
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
3/8"

Immediately Available - 77 in stock

M311-06529

FT Pro 10MM OD X 1/2" BSPT Male Stud Elbow

MPL10-04
BSPT
10
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/2"

Available to Order

M311-06529

FT Pro 8MM OD X 1/8" BSPT Male Stud Elbow

MPL8-01
BSPT
8
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/8"

Immediately Available - 259 in stock

M311-06529

FT Pro 10MM OD X 1/4" BSPT Male Stud Elbow

MPL10-02
BSPT
10
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/4"

Immediately Available - 244 in stock

M311-06529

FT Pro 8MM X 1/4" BSPT Male Stud Elbow

MPL8-02
BSPT
8
-10°C to +60°C
One Touch All Metal
Brass Nickel Plated
8
1/4"

Immediately Available - 761 in stock

M311-06529

FT Pro Male Hex Swivel Elbow SUPERTHR EAD 8 X 1/2"

MPL8-04
–
–
–
One Touch All Metal
–
–
–

Immediately Available - 16 in stock
