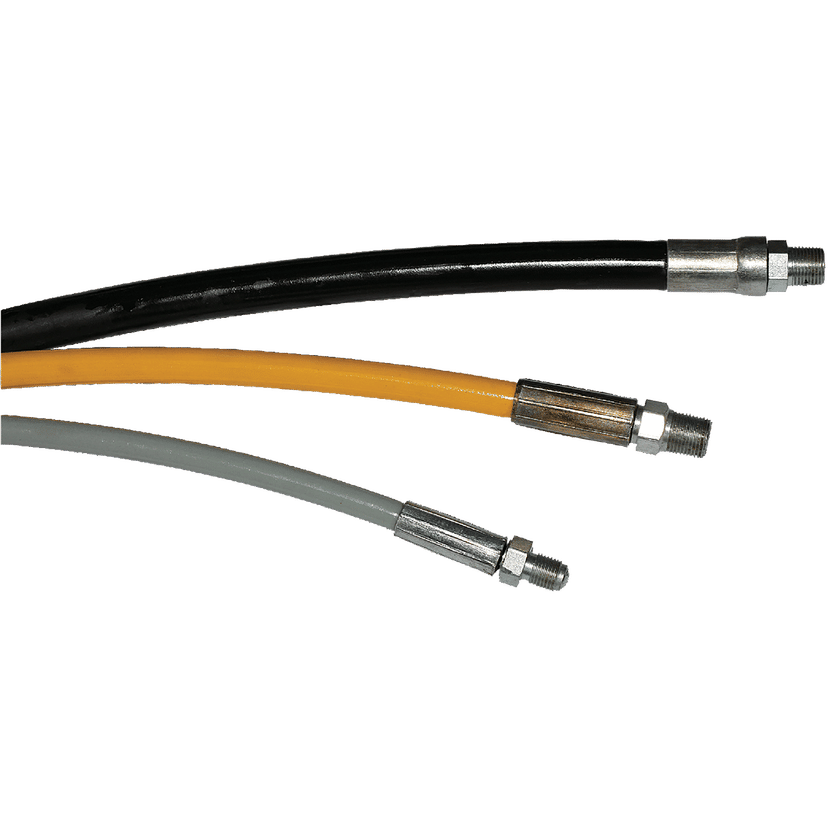

Eagle Pro 12.7MM OD X 1/4" ID High Pressure Hoses
Product Code: EH-700-04-TWIN
...
tech sheet 10175
Details
Inside Diameter Inch
1/4"
Series
Thermoplastic
Hose Diameter (DN)
12.7
Outside Diameter mm
12.7
Length Metres
1
Brand
Eagle Pro
Working Temperature
-40°C to +100°C
Bend Radius mm
70
Specification
12.7mm Outside Diameter x 1/4" Inside Diameter, High Pressure Hoses, Twin Line Jacking Hose, 70mm Bend Radius, Per Metre Length, Working Temperature -40°C to +100°C, Bursting Pressure 2758 bar, Maximum Pressure 700 bar, Eagle Pro
Eagle Pro warrants all of it's products to be free from defects in matrial and workmanship for the life of the product. Damaged goods as a result of missuse or missapplication are not coverred under the warranty. All wearing parts are also excluded from this warranty. Eagle Pro products meet or exceed your performance requirements, however in the unlikely event that an Eagle Pro product fails due to material or workmanship defect you may contact your supplier to have the issue investigated.
