FT Pro 1/4" ID SAE 100R7 Hydraulic Hose 100R7
Product Code: 100R7-04-75...
Available to Order
tech sheet 5011
Details
Working Temperature
-40°C to +93°C
Brand
FT Pro
Length Metres
75
Inside Diameter Inch
1/4"
Hose Diameter (DN)
13
Colour
Black
Standard
SAE 100R7
Series
Cotton Braided
Maximum Working Pressure bar
210
Material
Polyurethane
Bend Radius mm
100
Outside Diameter mm
13
Specification

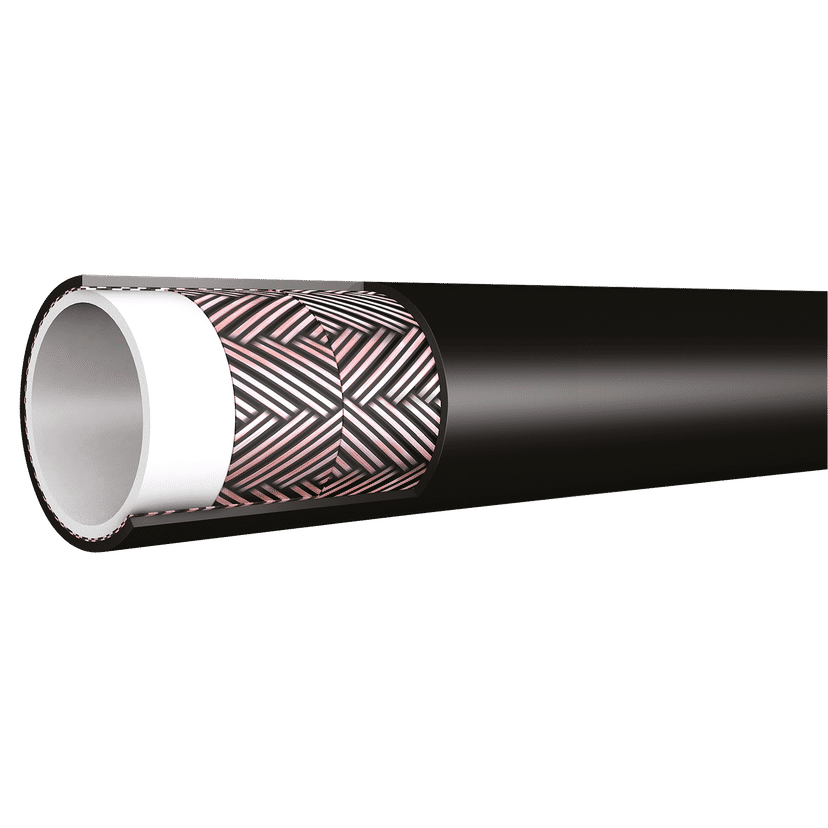

13.0mm Outside Diameter x 1/4" Inside Diameter, Hydraulic Hose, 2 Yarn, Thermoplastic, 100R7, 75 Metre Coil, 100mm Bend Radius, Black, Polyurethane, Fibre Braid, SAE 100R7, Bursting Pressure 840 bar, Working Temperature -40°C to +93°C, Maximum Working Pressure 210 bar, FT Pro
Application: Thermoplastic hose with perforated coverr for use on medium pressure hydraulic applications. Specification: SAE100 R7. Construction: Inner tube: thermoplastic elastomer. Reinforcement: 2 single textile yarn braids. Outer coverr: high abrasion resistant polyurethane. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, lubricating oils, solvent and gas transfer. Available per 1 mtr
Additional Variants
Product Name
Product Code
Number of Gangs
Bend Radius mm
Maximum Working Pressure bar
Outside Diameter mm
Hose Diameter (DN)
Inside Diameter Inch
List Price
Yes
115
175
15.1
15.1
5/16"
Immediately Available - 5 in stock
Yes
75
210
10.8
10.8
3/16"
Immediately Available - 4 in stock
–
125
155
17
17
3/8"
Immediately Available - 7 in stock
–
175
140
20.7
20.7
1/2"
Available to Order
