FT Pro 3/8" ID SAE 100R6 Hydraulic Hose 50M Coil
Product Code: 100R6-06-50
...
Immediately Available - 116 in stock
tech sheet 5010
Details
Material
Synthetic Rubber
Brand
FT Pro
Outside Diameter mm
16.7
Hose Diameter (DN)
16.7
Colour
Black
Maximum Working Pressure bar
28
Inside Diameter Inch
3/8"
Working Temperature
-40°C to +100°C
Series
Cotton Braided
Bend Radius mm
75
Length Metres
50
Standard
SAE 100R6
Specification
16.7mm Outside Diameter x 3/8" Inside Diameter, Hydraulic Hose, 1 Yarn, 100R6, 50 Metre Coil, Black, 75mm Bend Radius, Black, Synthetic Rubber, Fibre Braid, SAE 100R6, Bursting Pressure 112 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 28 bar, FT Pro

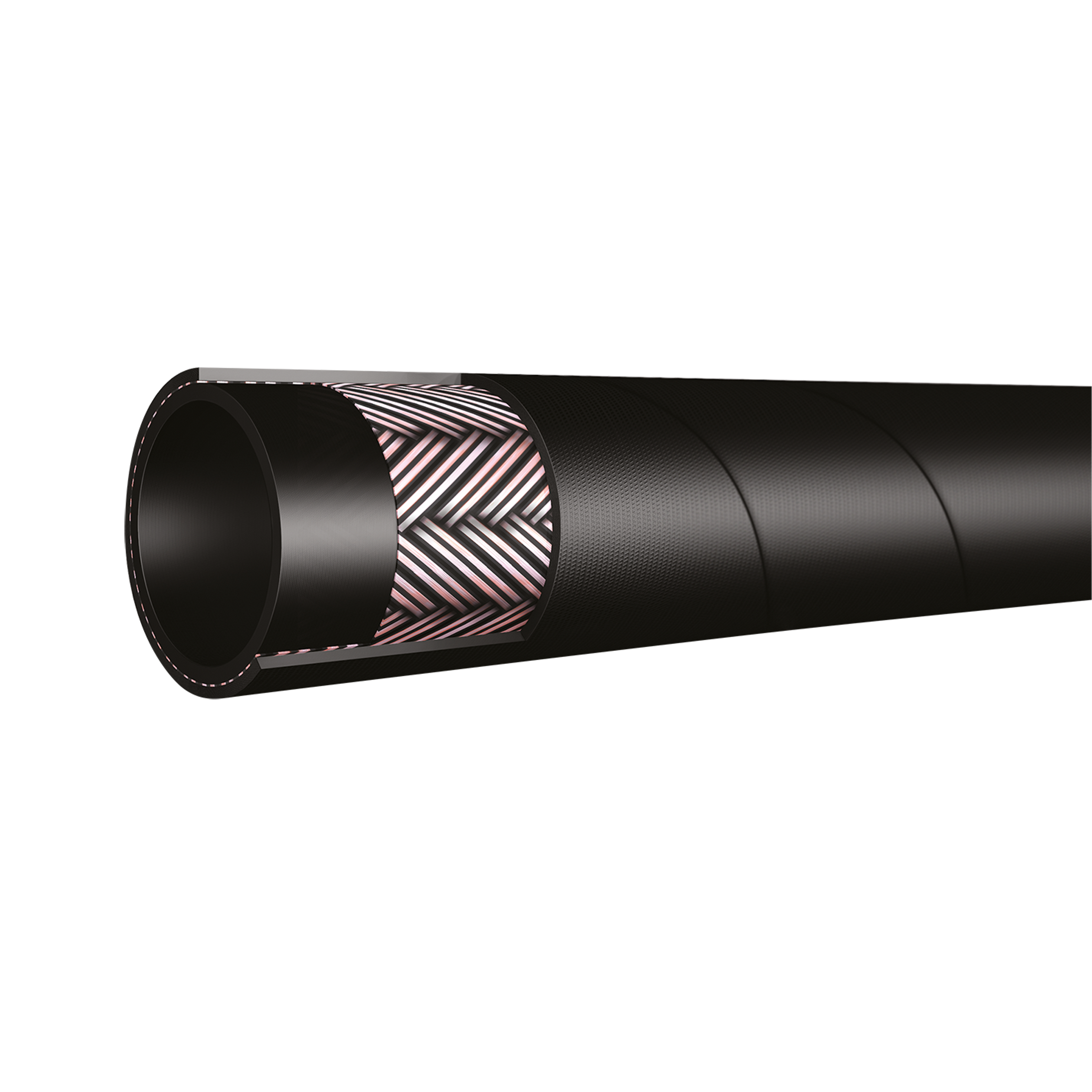

Application: Low pressure hydraulic applications, for use with push style fittins. Specification: SAE100 R6, exceeds EN584. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single textile yarn braid. Outer coverr: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. Available per 1 mtr
Additional Variants
Product Name
Product Code
Inside Diameter Inch
Bend Radius mm
Outside Diameter mm
Hose Diameter (DN)
Maximum Working Pressure bar
Buy Price
1/2"
100
20.6
20.6
28
£291.24
Immediately Available - 101 in stock
5/8"
125
23.8
23.8
24
£365.20
Immediately Available - 51 in stock
1/4"
65
13.5
13.5
28
£145.61
Immediately Available - 16 in stock
5/16"
75
15.1
15.1
28
£184.90
Immediately Available - 70 in stock
